FM200 total Flood System

Pipe Work Type FM200 Total Flood System
 Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.

 1.Product Description.

1).Product parameter.



Technical Parameter


Filling pressure




Scale of Protective region for one zone

areamax single-zone is 800m² volumemax single-zone is 3600m³


Spraying time



Filling density







Nitrogen Pressure of Driving Device



Condition of reserving room for container

temperature: -10~50,           relative humidity: ≤97%


max working pressure




min working pressure




2).Product Introduction.

Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.

1. Clean gas, colorless and tasteless and non-corrosive

2. Electric insulation, utilization for extinguishing of electrical combustion

3. No residue and pollution inside protection zone

4. No damage to ozone layer

Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and it also saves much money for employment to supervise the protective area.

1. Totally automatic system

2. Accurate control of protection zone

3. No need for employment of monitor staff

4. Manual or electromagnetic manipulation and mechanical manipulation


Management of Multiple zones is also in the safe control of the whole system. We can use one system to protect multiple zones through selective valves. It can let the whole system alternative aiming at different protective zone. Agent can be discharged into where the fire happens. It will be very efficient to put out fire in short time. One thing that need to mention, is that a little room should be prepare to be as storage space for the whole system.

1. Multiple management in the control of the whole system

2. Agent quantity for biggest zone is enough to protect all zones through selector valves

3. Direct target to expensive machine or delicate device

4. Short time discharge of extinguishing agent

5. Preparation for storage room

6. Space confirmation of placement for cylinder group

2.Product Applications:

Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.

The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.

3.Product Compositions:

piped network type of fm200 automatic fire suppression system is mainly composed by three parts. Extinguishing devices and pipe fittings and electrical accessories.

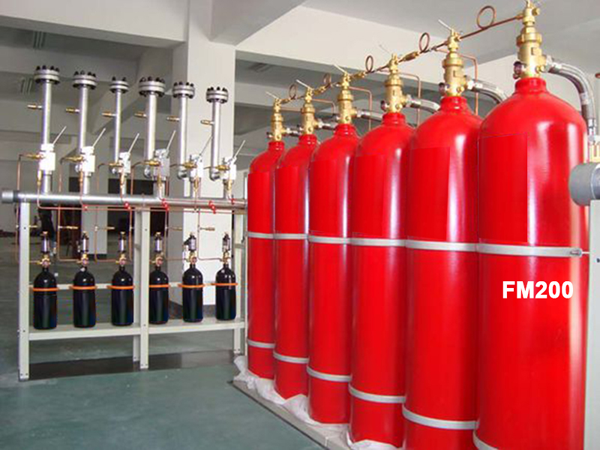

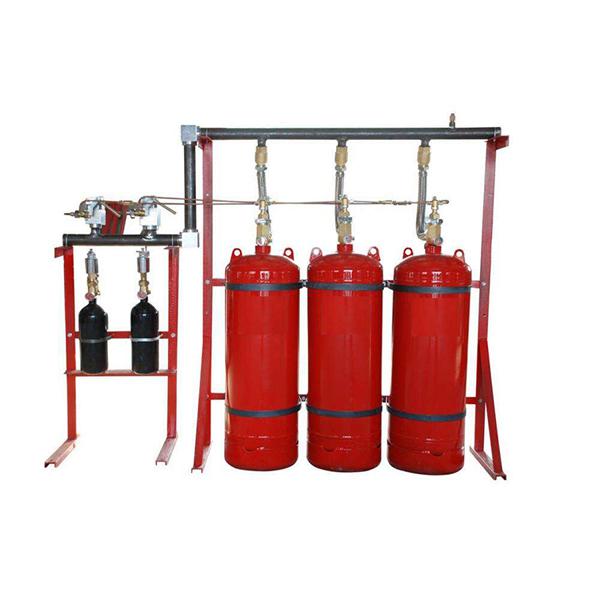

Extinguishing devices are such things, like cylinder to fill and store fm200, frame and driving device(nitrogen cylinder) to trigger the storage cylinder to discharge agent and so on.

Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow and so on.

Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.

These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.

Here attached below is complete composition of whole system,

4.Competitive Advantage:

In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.

Another one is that fm200 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.

It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.

It can let multiple zones are protectively in the control of one system. Then it will save much money for big and multiple zones.

5.Working principle.

Here is the illustration of working principle to whole system,

6.Simulated diagram:

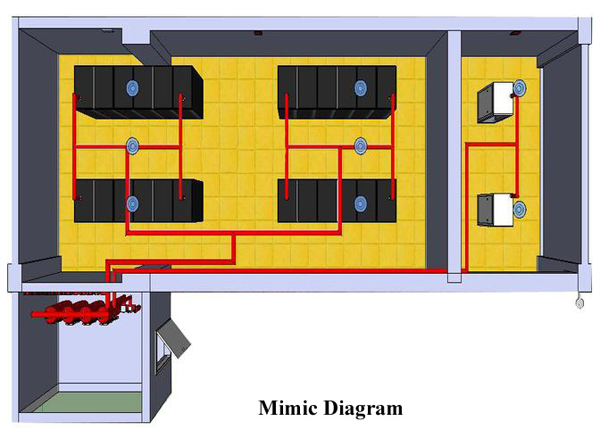

Below attached is one mimic diagram of piped network type of fm200 automatic fire suppression system,

6.Packaging & Shipping


Carton package

Loading Port


Delivery Method

By sea.

Leading Date

Normally within 45 days after received the down payment.

Payment Terms

T/T,L/C,D/P,D/A,Western Union ect.


OEM service offered


7.Company Information

PRI-SAFETY specialized in fire fighting products:

Fire extinguisher;Fire Suppression System;Aerosol Fire Extinguisher system;Fire hose reel;Fire hydrant;Fire cabinetFire Hose;Sprinkler system;Fire blanket;Fire alarm;Etc.


We have CE, EN3, EN671, EN1869, UL, etc certificates for most of our products.

We mainly export to Europe, Middle east, Africa, Latin America and so on.

We also supply OEM products, High Quality, Professional Service, Honesty is our business basic rules.

8. FAQ.

1). May I get a sample before placing an order?

---Yes, of course. Hope we have chance to work together to win more market.

2). Are your company PRI-SAFETY a manufacturer or trading company?

---Were a manufacturer.

3). Can you print our logo and support OEM?

---Yes, no problem. OEM supported.

4). How long does it take to delivery?

---Usually in 30~45 days after received down payment.

5).Payment Trems:

---30% T/T as deposit, 70% balance after finish goods and before shipment.
