FM200 total Flood System

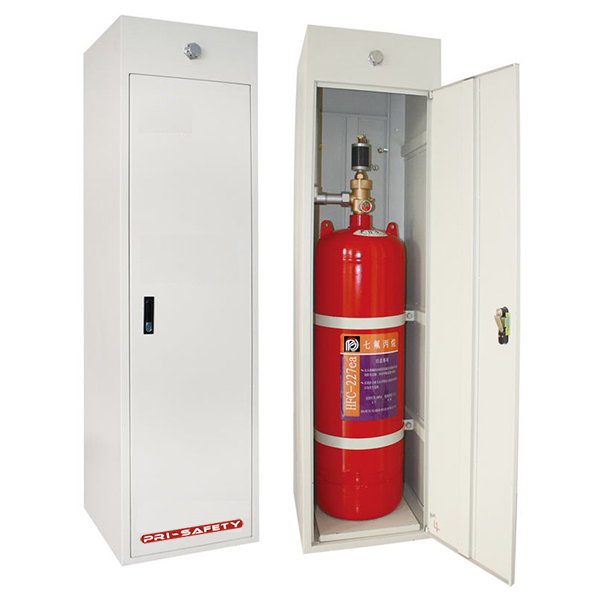

Cabinet Type FM200 Total Flood System
 Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.

Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and also it saves much money for employment to supervise the protective area.

 1.Product Description.

1).Product parameter.

No.

specification

Technical Parameter

1

Filling pressure

2.5Mpa

2

Relief pressure

5.0±0.225Mpa

3

Spraying time

≤10s

4

Working temperature

050

5

Power

DC24V/1.6A

6

max working pressure

4.2Mpa



2).Product Introduction.

Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.



Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and also it saves much money for employment to supervise the protective area.

2.Product Applications:

Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.

The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.

3.Product Compositions:

Single cabinet type of fm200 automatic fire suppression system is mainly composed by two parts. Extinguishing devices and electrical accessories.

Extinguishing devices are such things, like cabinet to store extinguishing device, cylinder to fill and store fm200 and flexible hose and solenoid actuator and so on.

Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.

These integrated two parts will be efficient to detect and supervise and alarm and extinguish fire automatically.

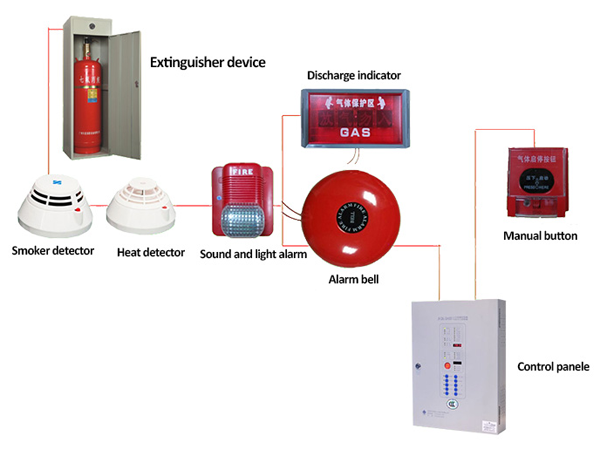

Here attached below is complete composition of whole system,











4.Competitive Advantage:

In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.

Another one is that fm200 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.

It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.

Different from piped network type of fm200 automatic fire suppression system, it will be simple to install. Because there is no pipeline installation. If your protective zone is relatively small and there is no multiple zones more than three, it will save much money than the former.

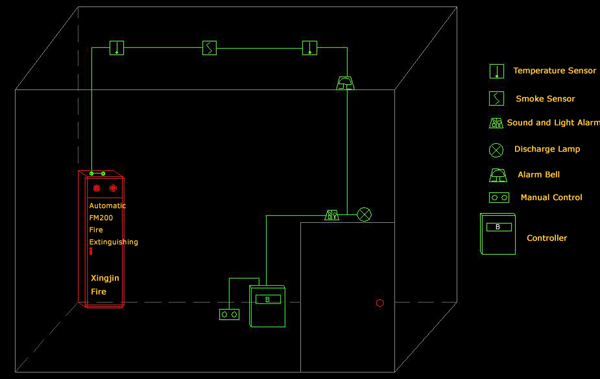

5.Working principle.

Here is the illustration of working principle to whole system,

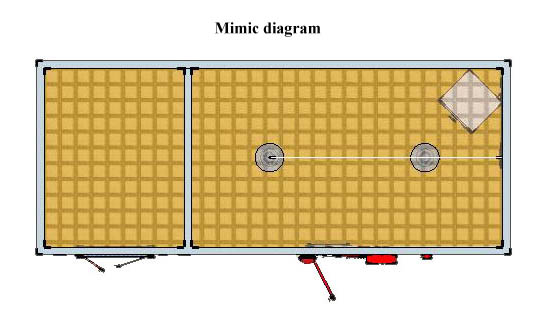

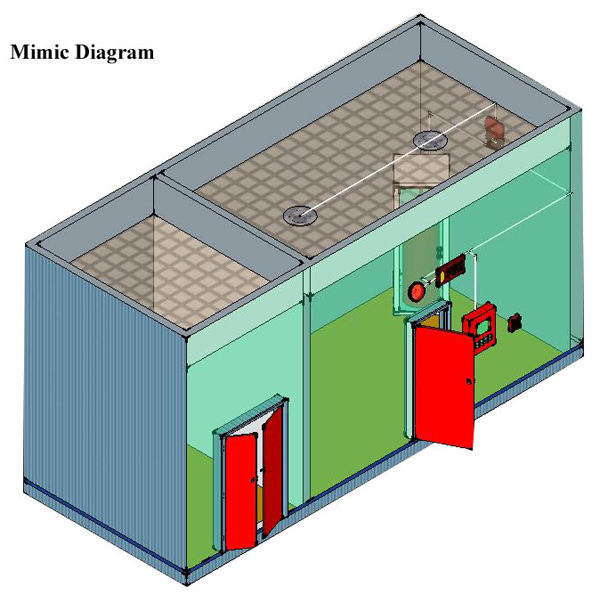

6.Simulated diagram:

Below attached is one mimic diagram of single cabinet type of fm200 automatic fire suppression system.






6.Packaging & Shipping

Packing

Carton package

Loading Port

Ningbo,China.

Delivery Method

By sea or by air.

Leading Date

Normally within 45 days upon receipt of deposit.

Payment Terms

T/T,L/C,D/P,D/A,Western Union ect.

Service

OEM service offered



7.Company Information

PRI-SAFETY specialized in fire fighting products:

Fire extinguisher;Fire Suppression System;Aerosol Fire Extinguisher system;Fire hose reel;Fire hydrant;Fire cabinetFire Hose;Sprinkler system;Fire blanket;Fire alarm;Etc.



We have CE, EN3, EN671, EN1869, UL, etc certificates for most of our products.

We mainly export to Europe, Middle east, Africa, Latin America and so on.

We also supply OEM products, High Quality, Professional Service, Honesty is our business basic rules.
