Electric Equiment Automatic fire Suppression System

Indirect FM200/Novec1230 Automatic Fire Suppression Systems
 Full-automation heating start, no electricity;

High effectively;

Simple Installation and maintenance;

Suitable for electric equipment;

Refillable.

 1. Product Description.

1).Product Features.

Full-automation heating start, no electricity;

High effectively;

Simple Installation and maintenance;

Suitable for electric equipment;

Refillable.



2).Specification.

Indirect Type FM200/Novec1230 Automatic Fire Suppression Systems for Electric Equipment

Brand Name

BHAFFCO

Capacity

1L,2L, 3L, 4L, 6L, 9L, 12L,or customized capacity.

Agent

FM200/Novec1230

Working Pressure

14Bar

Testing Pressure

27Bar

Cylinder Material

SS304 or St12 red painting

Certificate

CE0036

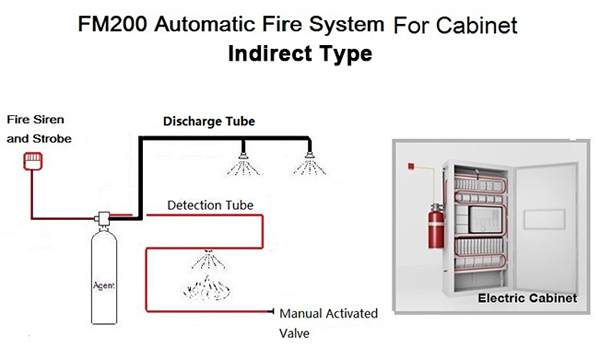

  3).Product Activated Principle.

Step1: Detection Tube ruptures to hole when temperature reach 140 or 160,and Spraying through the hole.(Or pushing the manual valve at the end of detection tube,pressure releasing from the tube end and spraying.)
Step2: The resulting drop in pressure causes the head valve to be activated.
Step3: Valve was opened and agent was discharged through the discharge tubing to the nozzles.
Step4: Agent covering the area and suppressing the fire quickly and thoroughly.
This system is totally automatic and is totally independent of electricity.

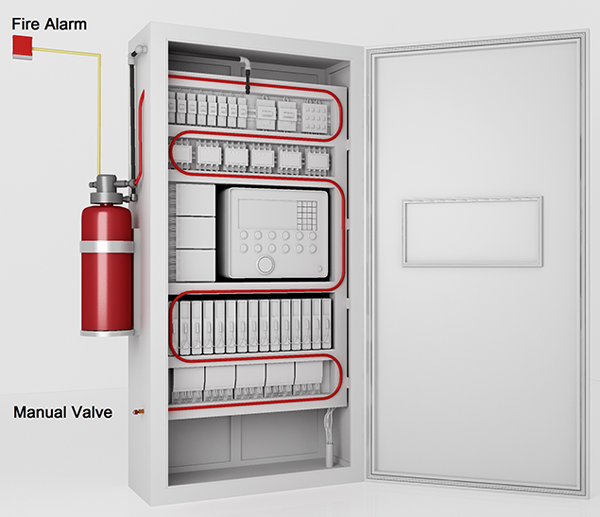

[1].System with fire siren and strobe.

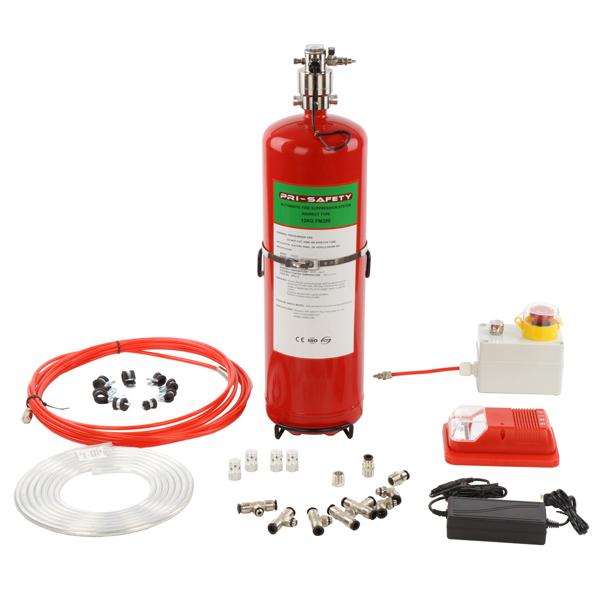

[2].System with complete system.

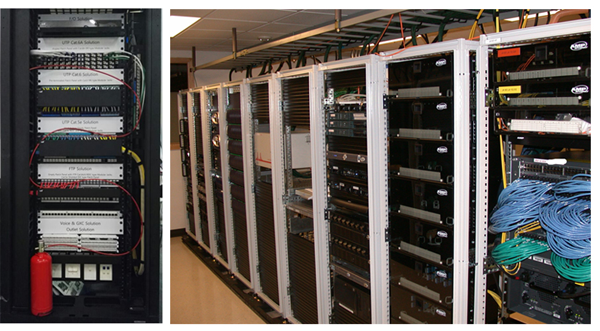

4).Application shows.




Product testing video https://youtu.be/Q9amEXisOCk



2. Packing and shipping.
