Fire Extinguisher and Cylinder

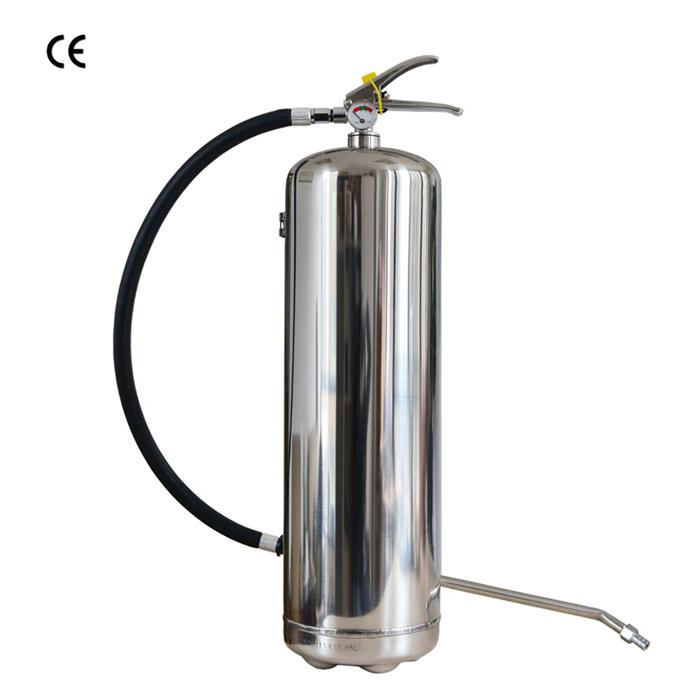

Stainless Steel Wet Chemical Fire Extinguisher (CE)
·TUV CE0036 certificated
·Material: SS304
·Suitable against class A, class F
·All fire extinguishers must be serviced in accordance with BS5306
·Stainless Steel polished
·All fire extinguishers are tested no leakage.
·Chemical Agent: Wet Chemical.
·Working Pressure: 14Bar;
  Test Pressure: 27Bar;
Capacity
2L
3L
4L
6L
9L
Item No.
SSW-02
SSW-03
SSW-04
SSW-06
SSW-09
Out-dia.(mm)
Ф110
Ф130
Ф140
Ф160
Ф180
Cylinder Length(mm)
302
346
410
450
485
Cylinder Weight (kg)
1.17
1.69
2.1
2.95
3.6
ExtinguisherWeight(kg)
3.8
5
6.7
9.5
14
Volume(L)
2.4
3.9
5.4
7.8
10.5
Filled Weihgt(kg)
2
3
4
6
9
Temperautre Range
0+60℃
0+60℃
0+60℃
0+60℃
0+60℃
Working Pressure(bar)
14
14
14
14
14
Testig Pressure(bar)
27
27
27
27
27
Min Wall-thickness
1.07
1.13
1.13
1.23
1.3
Material
SUS304
SUS304
SUS304
SUS304
SUS304
Fire Rate
8A 25F
13A 40F
13A 55F
13A 75F
27A 95F
Packing Size(mm)
360x250x400
140x150x400
150x160x440
170x180x510
190x200x600
Qty./ctn(pcs)
6
1
1
1
1
Qty./1x20'ft(pcs)
4500
3200
2600
1800
1200
