Stainless Steel Fire Extinguisher

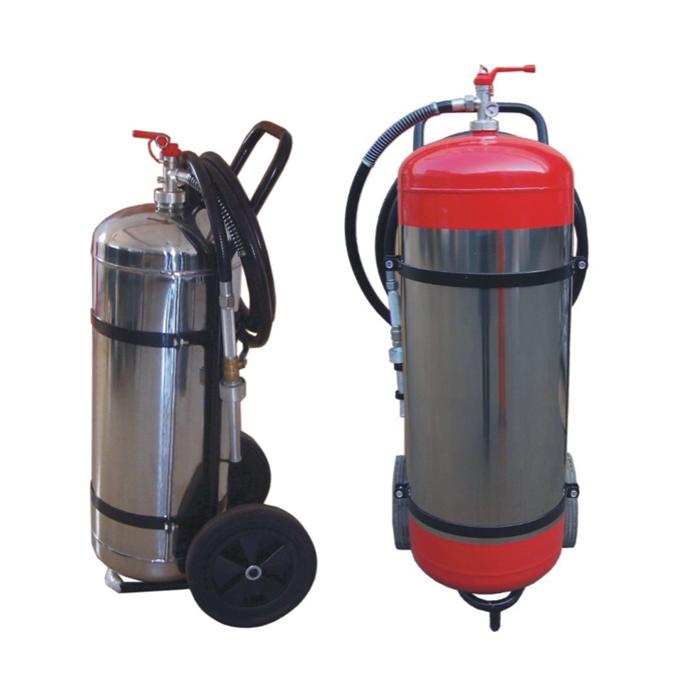

Stainless-Steel Dry Powder Wheeled Fire Extinguisher
·TUV CE0036 standard
·Material: SS304
·Suitable against class A, class B, class C, and live electrical fires
·All fire extinguishers must be serviced in accordance with BS5306
·Stainless Steel polished or RAL3000 red painting
·All fire extinguishers are tested no leakage.
·Chemical Agent: ABC40%, Pressured with nitrogen gas.
·Working Pressure: 14Bar;
  Test Pressure: 27Bar;
Capacity
25Kg
50Kg
75Kg
100Kg
Item No.
SSP-25
SSP-50
SSP-75
SSP-100
Out-dia.(mm)
Ф300
Ф325
Ф406
Ф406
Cylinder Length (mm)
570
908
885
1150
Cylinder Weight (kg)
20
32
45
50
Extinguisher Weight (kg)
56
95
120
180
Volume (L)
30
60
85
120
Full Weihgt(kg)
25
50
75
100
Temperautre Range
-30+60℃
-30+60℃
-30+60℃
-30+60℃
Working Pressure(bar)
15
15
15
15
Testig Pressure(bar)
35
35
35
35
Min Wall-thickness
2.5
3.0
3.0
3.0
Material
SUS304
SUS304
SUS304
SUS304
Fire Rate
55A ⅠB C
55A Ⅱ B C
55A Ⅱ B C
55A Ⅲ B C
Packing Size(mm)
580x
470x970
630x
500x1120
630x
570x1100
630x
570x1220
Quantity/CTN(pcs)
1
1
1
1
Quantity/20ft(pcs)
105

75

70

60
